Branch coverage and unreachable branches

Task 1

For each example from the section "Statement coverage and unreachable code" (Task 1) of this book, create a Control Flow Graph and identify  branches that are unreachable.

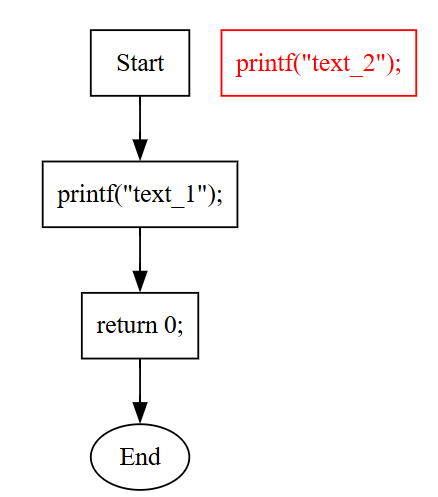

1. Return Statement Before Print Statement

#include <stdio.h>
int main()
{
    printf("text_1");
    return 0;
    printf("text_2");
}

Unreachable:

• printf("text_2");
  (It comes after the return, so it will never execute.)

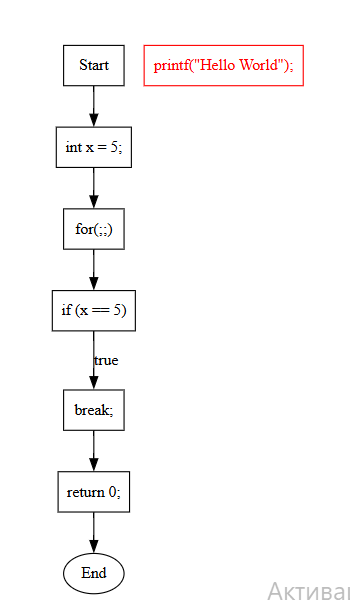

2. Infinite Loop Before Statements

#include <stdio.h>
int main()
{
  int x = 5;
  for (;;)
  {
    if (x == 5)
    {
      break;
      printf("Hello World");
    }
  }
  return 0;
}

Unreachable:

• printf("Hello World");
  (It is placed after break, so it will never be executed.)

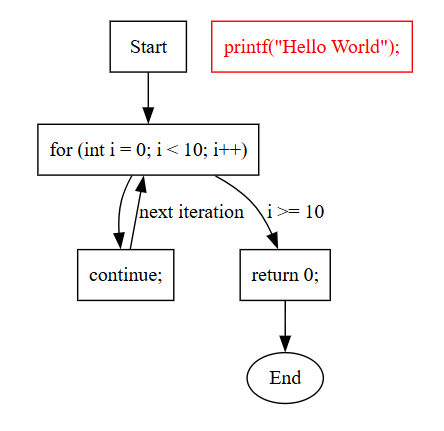

3. Continue Before Print

#include <stdio.h>
int main()
{
  for (...int i = 0; i < 10; i++)
  {
    continue;
    printf("Hello World");
  }
  return 0;
}

Unreachable:

• printf("Hello World");
  (zawsze pomijane przez continue)

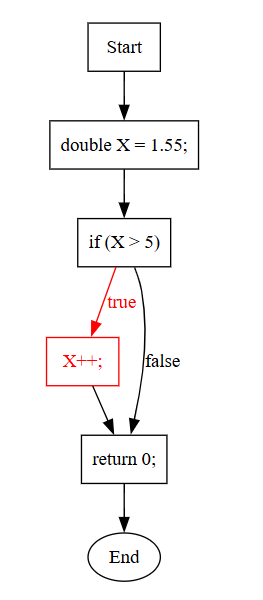

4. False Condition in if Statement

#include <stdio.h>
int main()
{
  double X = 1.55;
  if (X > 5)
  {
    X++;
  }
  return 0;
}

Efectively Unreachable at Runtime (dlabut tejstructurally konkretnej wartości X)reachable):

• • X++;
    (ponieważThis line is not executed at runtime for X = 1.55, since the condition X > 5 jestis fałszywe,false. ciałoHowever, it could be executed if the value of ifX niewere jestdifferent, wykonywaneso dlait’s tejnot wartości;marked jednakas kodunreachable samin wthe sobiegraph niesyntax.

    jest
  strukturalnie nieosiągalny – jest tylko pomijany w tym przypadku)

 Task 2

For each example from the section "Statement coverage and unreachable code" (Task 2) of this book, create a Control Flow Graph and identify  branches that are unreachable.
